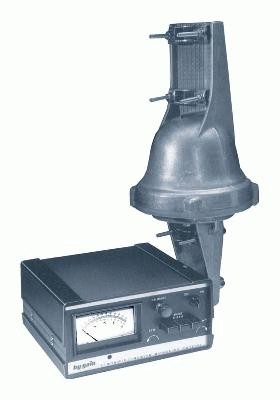

Hy-Gain CD-45IIX

The CD-45IIX handles 8.5 sq. feet mounted inside a tower, or 5 sq. ft. with mast adapter. Low temperature grease good to -30 F degrees. Bell rotator design gives total weather protection, dual 58 ball bearing race gives proven support.

Die cast ring gear, stamped steel gear drive, heavy duty, trouble free gear train. North center scale, lighted directional indicator, 8-pin plug/socket on control unit, snap-action control switches. Low voltage control. Safe operation, takes masts to 2 1/16. MSLD light duty lower mast support. Operates at 220V.

CD-45IIX Rotator Specifications
Wind Load Capacity (inside tower)  8.5 square feet
Wind Load Capacity (with mast adapter)  5.0 square feet
Turning Power  600 pounds
Brake Power  800 pounds
Brake Construction  Disc Brake
Bearing Assembly  Dual race/48 ball bearings
Mounting Hardware  Plate clamps/Steel U-Bolts
Control Cable Conductors  8
Shipping Weight  22 pounds
Effective Moment (in tower)  1200 ft/lbs.
