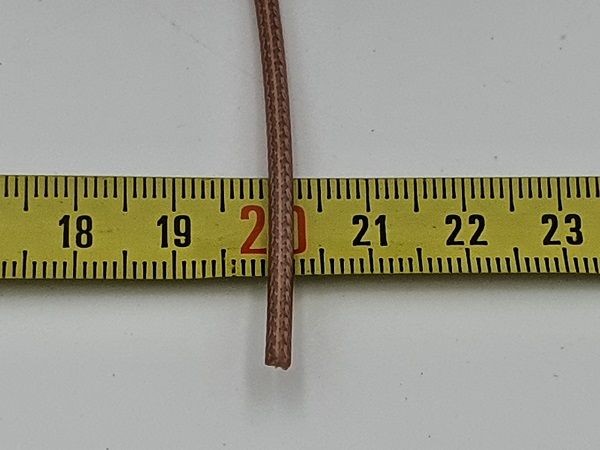

Koaxialkabel RG 179 BU 75 Ohm

FEATURES, FUNCTIONS AND SPECIFICATIONS:
Construction:
• Inner Conductor: Silver Plated Copper Clad Steel
… Diameter: 7 x 0.10 mm (7 x 0.004 inch)
• Dielectric: PTFE
…Diameter: 1.6 mm (0.063 inch)
• Shield: 95% Silver Plated Copper Braid
…Diameter: 2.06 mm (0.081 inch)
• Jacket: Brown FEP
…Diameter: 2.54 mm (0.100 inch)

Electrical Characteristics:
• Capacitance: 64.0 pF/m
• Impedance: 75 Ohm
• Velocity of Propagation: 69.5%
• Conductor DCR: 800.5 Ohm/km
• Outer Shield DCR: 27.9 Ohm/km
• Max. Operating Frequency: 3000 MHz
• Max. Operating Voltage: 1200 RMS
• Operating Temp. Range: -55°C to 200°C

Attenuation (20°C)
Frequency    Max Attenuation
10 MHz        17.4 dB/100m (5.3 dB/100ft)
50 MHz        27.9 dB/100m (8.5 dB/100ft)
100 MHz      32.8 dB/100m (10.0 dB/100ft)
200 MHz      41.0 dB/100m (12.5 dB/100ft)
400 MHz      52.5 dB/100m (16.0 dB/100ft)
700 MHz      64.6 dB/100m (19.7 dB/100ft)
900 MHz      73.2 dB/100m (22.3 dB/100ft)
1000 MHz     78.7 dB/100m (24.0 dB/100ft)
