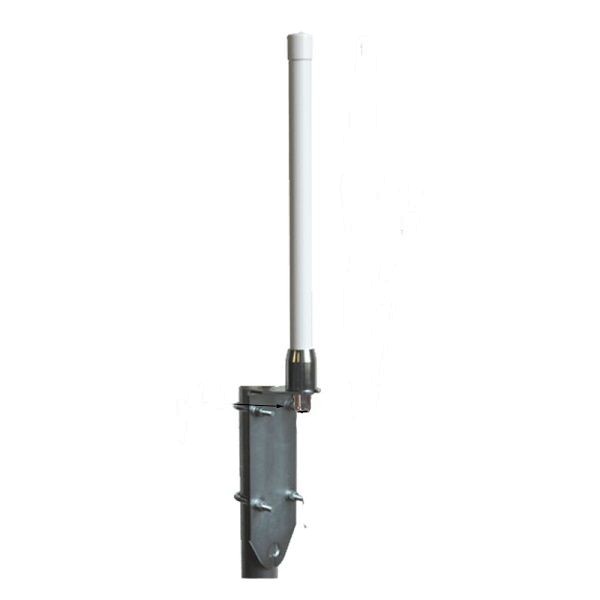

Sirio SCO-868-6 N-Female

FEATURES, FUNCTIONS AND SPECIFICATIONS:

Product Number:
SI 2111620.00/NM: SCO-868-4 N-M
SI 2111620.00: SCO-868-4 N-F
SI 2111720.00: SCO-868-6 N-F
SI 2111620.80: SCO-868-4 W/Cable
SI 2111720.80: SCO-868-6 W/Cable

Electrical Data:
• Type: Colinear
• Radiation: Omnidirectional
• Polarization: Linear vertical
• Frequency range: 868-870 MHz @ SWR ≤1.5 No tuning required
• Systems: ISM/SIGFOX/LoRa 868MHz
• Gain:
…SCO-868-4: 2.2 dBd – 4.3 dBi
…SCO-868-6: 4.1 dBd – 6.2 dBi
• Max Power: 20 Watt (CW)
• Cable lenght / type:
…SCO-868-4 N-M: Not supplied
…SCO-868-4 N-F: Not supplied
…SCO-868-6 N-F: Not supplied
…SCO-868-4 W/Cable: 5 m (16.4 ft) / Low loss
…SCO-868-6 W/Cable: 5 m (16.4 ft) / Low loss
• Connector:
…SCO-868-4 N-M: N-Male
…SCO-868-4 N-F: N-Female
…SCO-868-6 N-F: N-Female
…SCO-868-4 W/Cable: SMA-male, Other type on request
…SCO-868-6 W/Cable: SMA-male, Other type on request

Mechanical Data:
• Materials: Chromed brass, Galvanized steel, Fiberglass, PCB
• Height (approx):
…SCO-868-4 N-m: 500 mm (1.64 ft)
…SCO-868-4 N-f: 500 mm (1.64 ft)
…SCO-868-6 N-f: 770 mm (2.53 ft)
…SCO-868-4 W/Cable: 500 mm (1.64 ft)
…SCO-868-6 W/Cable: 770 mm (2.53 ft)
• Weight (approx):
…SCO-868-4 N-m: 280 gram (0.62 lb)
…SCO-868-4 N-f: 280 gram (0.62 lb)
…SCO-868-6 N-f: 330 gram (0.73 lb)
…SCO-868-4 W/Cable: 440 gram (0.97 lb)
…SCO-868-6 W/Cable: 490 gram (1.08 lb)

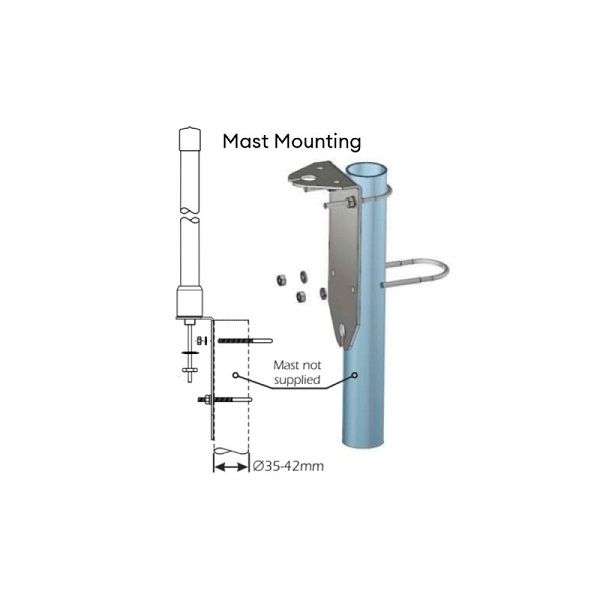

• Mounting type:
…SCO-868-4 N-m: On-Connector
…SCO-868-4 N-f: On-Mast, Thru-Holes, On-Wall
…SCO-868-6 N-f: On-Mast, Thru-Holes, On-Wall
…SCO-868-4 W/Cable: On-Mast, Thru-Holes, On-Wall
…SCO-868-6 W/Cable: On-Mast, Thru-Holes, On-Wall

PACKING INCLUDES:
1 Pc of Antenna
1 Pc of Bracket
2 Pcs of U-Bolt
1 Pc of User Manual in English
