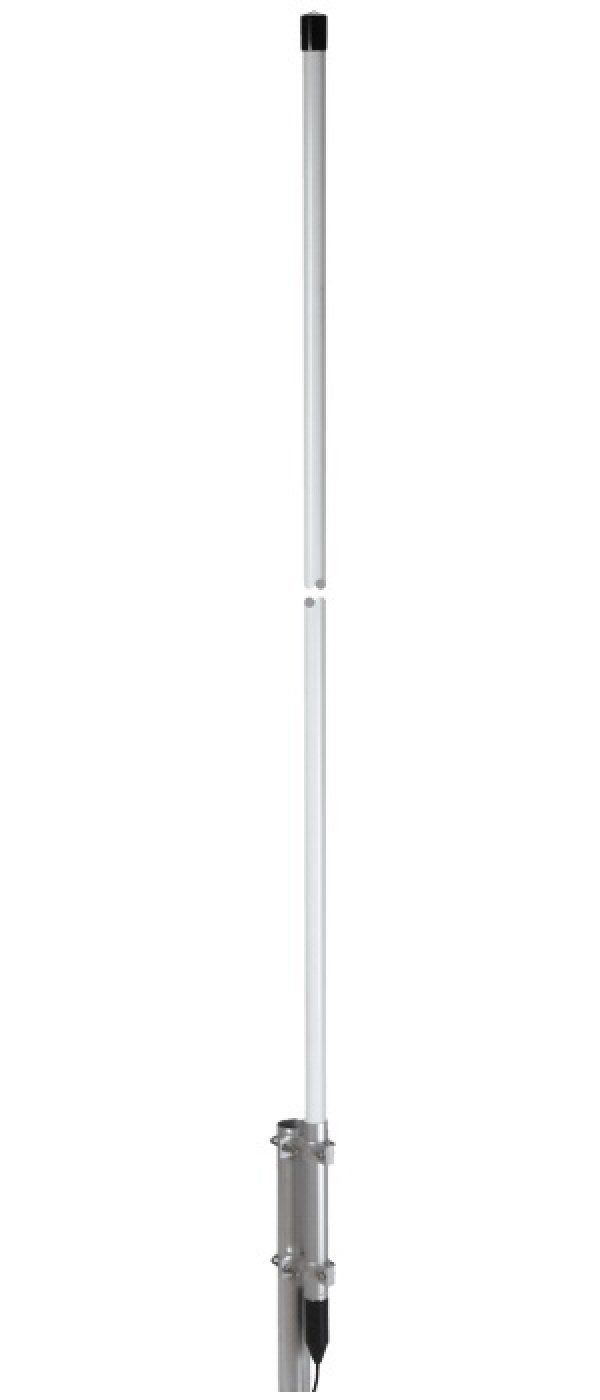

Sirio SPO-420-8 UHF Basisantenne 400-430 MHz

Delivery Time on Request / Length product* (*we can not ship this product - shipping cost on request)

Features:

• Base station antenna, Wide-band
  High-gain, Omnidirectional
• Suitable for land and marine service
• Protection from static discharges DC-Ground
• Perfect protection against the worst weather conditions
• Designed to work without Ground Plane

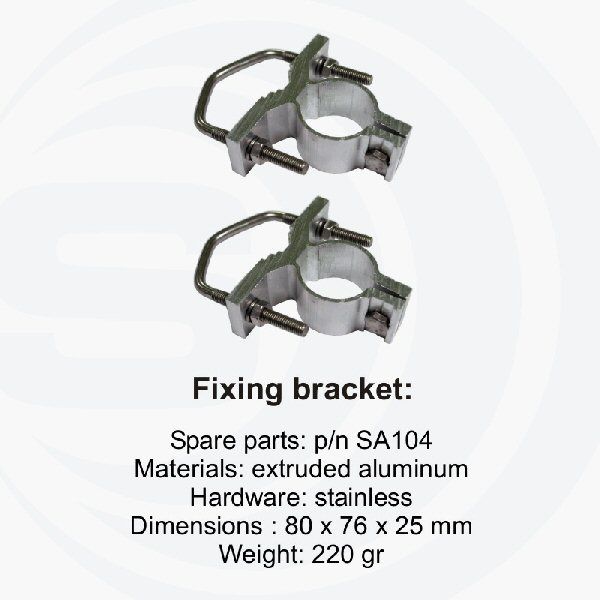

• Stainless steel hardwares

  Part Numbers:
  P/N 2115320/380 SPO-380-8
  P/N 2115320/400 SPO-400-8
  P/N 2115320/420 SPO-420-8
  P/N 2115320/440 SPO-440-8

  Electrical Data:
• Type: Colinear
• Frequency range @ SWR ≤1.5:
  SPO-380-8: 380-406 MHz
  SPO-400-8: 400-430 MHz
  SPO-420-8: 420-450 MHz
  SPO-440-8: 440-470 MHz
• Impedance: 50Ω
• Radiation (H-plane): 360° omnidirectional
• Radiation (E-plane): beamwidth @ -3 dB = 14°
• Radiation angle: 0°
• Polarization: linear vertical
• Gain: 6 dBd - 8.15 dBi
• Max. power (CW) @ 30°C: 75 Watts
• Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short
• Connector: N-female with rubber protection cap

  Mechanical Data:
• Materials: White fiberglass radome Ø 28.6mm, anodized 6063-t5 aluminium, brass, stainless steel, copper, EPDM rubber
• Wind load / resistance: 104 N @ 150 Km/h / 150 Km/h
• Wind surface: 0.089 m²
• Height (approx.): from 2940 to 2590 mm
• Weight (approx.): from 2040 to 1850 gr
• Operating temperature: -40°C to +80°C

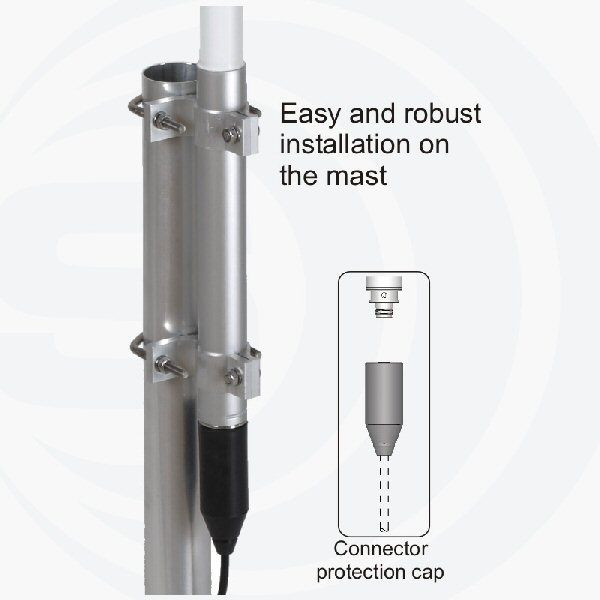

• Mounting mast: Ø 35-54 mm
