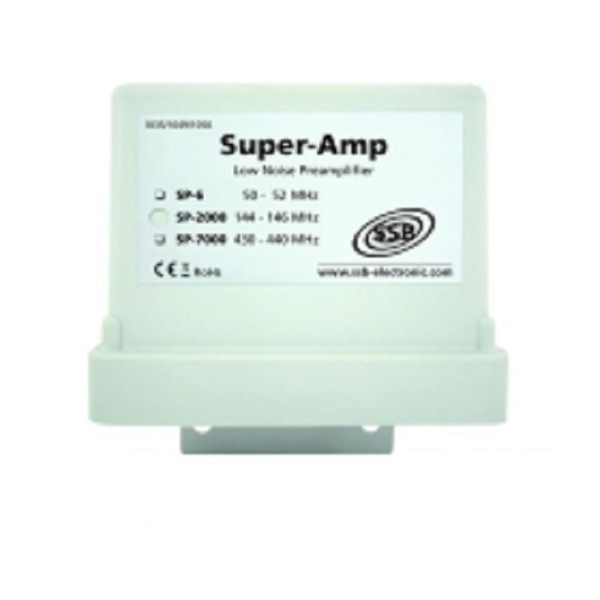

SP-7000 UHF Mastvorverstärker 430-440MHz

FEATURES, FUNCTIONS AND SPECIFICATIONS:
Technical Data
• Frequency range: 430 - 440 MHz
• Noise figure,typ.: 0,9 dB
• Amplification, adjustable: 10-20 dB
• Switching power:
...HF-VOX: 100 Watt
...Capacity P.T.T.: 500 Watt
...SSB: 300 Watt
• FM Insertion loss: 0.3 dB
• Operating voltage: 12V - 14V
• Connection: N-Female
• DC-Connection: UHF-Female
• Current consumption, typ.: 250 mA
• Mast diameter max.: 58 mm Rec.
• Remote powering coupler: DCW 2004 B

PACKING INCLUDES:
1 Pc of Preamplifier
1 Pc of Mounting Bracket
1 Pc User Manual
