RigExpert AA-650 ZOOM Analyzer

659,00 € *
Inhalt: 1 Stück

inkl. MwSt. zzgl. Versandkosten

Artikel lagernd und sofort versandfertig;
Lieferzeit: 5 Werktage (innerhalb Deutschlands)


  • AA-650
  • AA-650ZOOM
  • 4820185420297
RigExpert AA-650 ZOOM. New! Specifications Frequency range: 0.1 to 650 MHz Frequency entry: 1... mehr
Produktinformationen "RigExpert AA-650 ZOOM Analyzer"

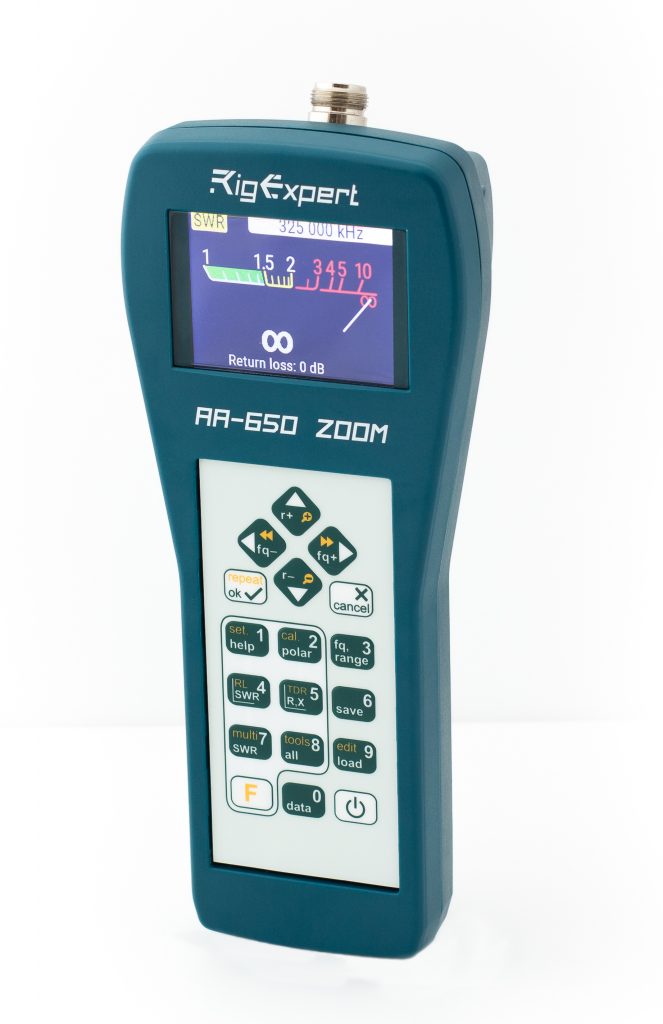

RigExpert AA-650 ZOOM.
New!
Specifications
Frequency range: 0.1 to 650 MHz

Frequency entry: 1 kHz resolution

Measurement for 25, 50, 75, 100, 150, 200, 300, 450 and 600-Ohms systems

SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes

R and X range: 0…2000, -2000…2000

Display modes: SWR, return loss, R, X, Z, L, C, Magnitude, and Phase Angle at a single frequency, SWR chart (100 points). SWR chart at fixed HAM bands by IARU Regions (100 points), Cable tools (Velocity factor & Cable length measurer, Stub tuner, Cable loss chart, Cable impedance chart), TDR

Optional open-short-load calibration in SWR, R, X, or Smith/polar chart graph modes.

RF output:
– Connector type: N
– Output signal shape: square, 0.1 to 200 MHz. For higher frequencies, harmonics of the main signal are used.
– Output power: -10 dBm (at 50 Ohm load)

Power:
– Three 1.2V, 1800…3000 mAh, Ni-MH batteries, type AA
– Max. 3 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used
– When the analyzer is connected to a PC or a DC adapter with a USB socket, it takes power from these sources

Interface:
– 320×240 color TFT display
– 6×3 keys on the water-proof keypad
– Multilingual menus and help screens (English – Spanish – Japanese)
– USB connection to a personal computer
– Bluetooth v. 4.2 (Single-mode, Class B)
Dimensions: 23x10x5.5 cm (9x4x2”)

Operating temperature: 0…40 °C (32…104 °F)

Weight: 650g (23 Oz)

Warranty: 2 years RigExpert Care

GTIN-13: 4820185420297

RigExpert AA-650 ZOOM is made in Ukraine.

Specifications are subject to change without notice
